Socketweld Fittings

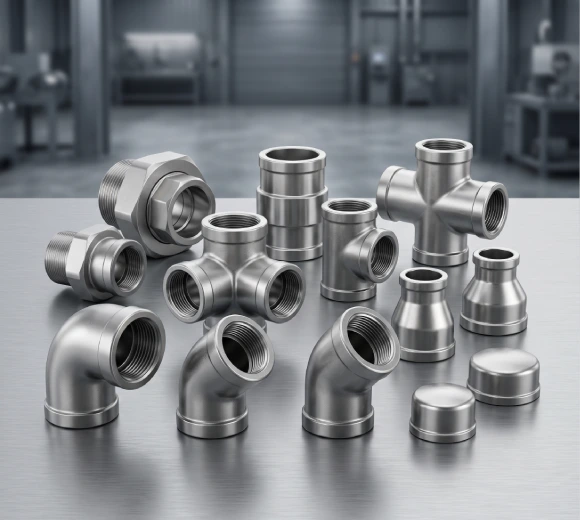

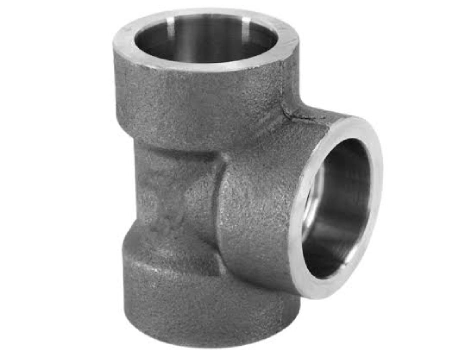

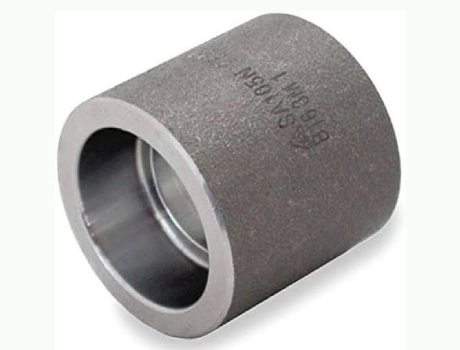

Manufacturing stockists and suppliers of Stainless Steel, Carbon Steel, Alloy Steel and Duplex Socketweld Fittings — Elbows, Tees, Unions, Couplings & Reducers — built to ASME B16.11 for small-bore, high-pressure piping.
Unik Metal Corporation is a trusted stockist and supplier of Socketweld Fittings used across small-bore, high-pressure instrumentation and process piping. Every batch is sourced from trusted manufacturers and checked against international quality parameters before it leaves our warehouse.
Socketweld Fittings
We are a specialist distributor, processor and supplier of Socketweld Fittings in Stainless Steel, Carbon Steel, Alloy Steel and Duplex / Super Duplex grades, forged and machined to close tolerance. We supply material sourced from leading manufacturers including Jindal Stainless (JSL), Ratnamani and other approved sources.
Stockists & Suppliers Of
- Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321, F347, F904L etc.
- Carbon Steel: ASTM A105, A350 LF2, LF3 etc.
- Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 etc.
- Duplex & Super Duplex Steel: UNS S31803, UNS S32750, UNS S32760, Alloy 20.
Specifications
Approved Brands
Jindal Stainless (JSL), Ratnamani and other trusted forging & machining houses.
Socket Depth Reference
Minimum socket bore depth as per ASME B16.11, dimensions in mm
| NPS (inch) | NB (mm) | Typical Min. Socket Depth (mm) |
|---|---|---|
| 1/8 – 3/8 | 6 – 10 | 8 |
| 1/2 – 3/4 | 15 – 20 | 10 |
| 1 | 25 | 11 |
| 1¼ – 1½ | 32 – 40 | 13 |
| 2 | 50 | 14 |
| 2½ | 65 | 16 |
| 3 | 80 | 17 |
| 4 | 100 | 19 |
Providing Customized Solutions
Unik Metal Corporation is providing customized solutions to our customers. Please feel free to ask if any queries.
If you require any kind of industrial raw material solution, please click here
