Metallic Gasket
Manufacturing stockists and suppliers of Metallic Gaskets — spiral wound, ring joint (RTJ) and metal jacketed types for high-pressure and high-temperature flanged joints.
Unik Metal Corporation is a trusted stockist and supplier of Metallic Gaskets used for sealing flanged joints across high-pressure, high-temperature oil, gas and process piping. Every batch is checked against international quality parameters before it leaves our warehouse.
Metallic Gasket

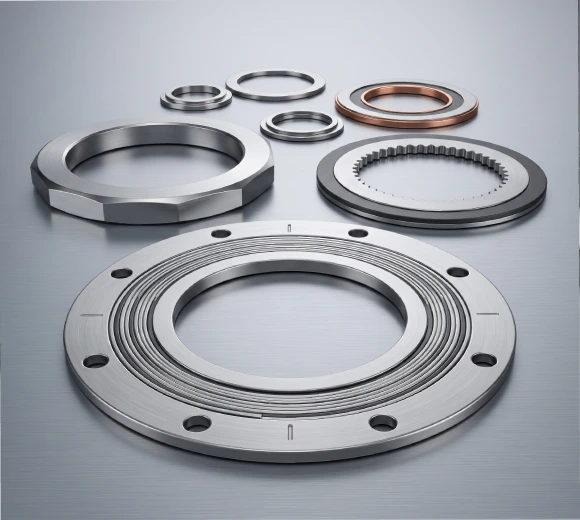

We are a specialist distributor and supplier of Metallic Gaskets, manufactured from stainless steel, Monel, Inconel and other alloy grades, supplied as spiral wound gaskets with filler material, solid ring type joints (RTJ), or metal jacketed gaskets as per flange specification. We supply material sourced from leading manufacturers and approved sources.
Stockists & Suppliers Of

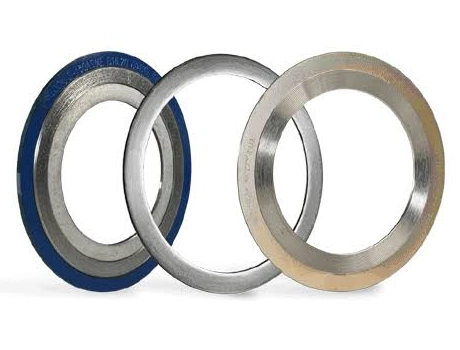

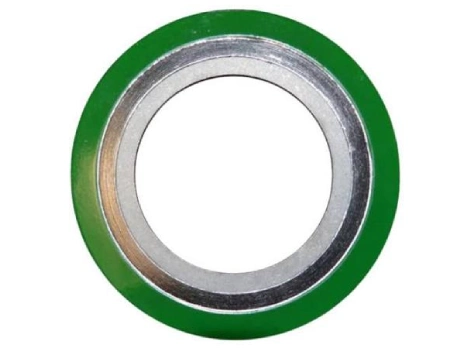

- Types: Spiral Wound Gasket (SWG), Ring Type Joint (RTJ), Metal Jacketed Gasket.
- Winding / body material: SS 304, SS 316, SS 321, Monel, Inconel, Titanium, Soft Iron.
- Filler material: Graphite, PTFE, Ceramic — selected as per service temperature.
- Used for high-pressure and high-temperature flanged joints where non-metallic gaskets are unsuitable.
Specifications
Approved Brands
Trusted metallic gasket manufacturers approved for high-pressure, high-temperature process, refinery and petrochemical piping applications.
Type & Service Guide
Typical service ranges — confirm against your process conditions
| Type | Typical Max Temp. | Typical Use |
|---|---|---|
| Spiral Wound (Graphite filled) | ~450°C | General process, steam & hydrocarbon lines |
| Spiral Wound (PTFE filled) | ~260°C | Corrosive & chemical service lines |
| Ring Type Joint (RTJ) | ~540°C | High-pressure wellhead & refinery flanges |
| Metal Jacketed (Soft Iron / SS) | ~450°C | Heat exchangers & high-temp process joints |
| Metal Jacketed (Monel/Inconel) | ~600°C | Severe service, corrosive & high-temp duty |
Providing Customized Solutions
Unik Metal Corporation is providing customized solutions to our customers. Please feel free to ask if any queries.
